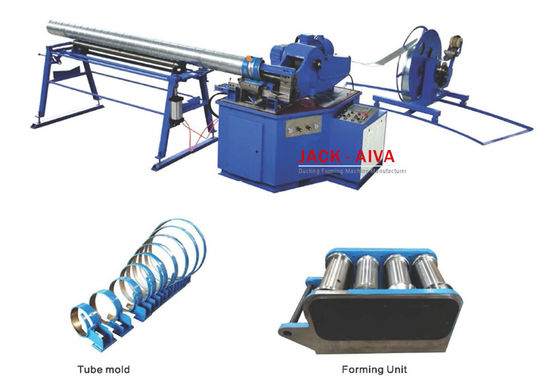

Spiral Ductwork Machine TF-1602 Spiral Tube Machine

Spiral Ductwork Machine TF-1602 Spiral Tube Machine

  • Spiral Ductwork Machine TF-1602 Spiral Tube Machine
Spiral Ductwork Machine TF-1602 Spiral Tube Machine
Product Details:
Place of Origin: China
Brand Name: Jack-Aiva
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 60 working days
Payment Terms: T/T L/C
Contact Now
Detailed Product Description
Product Name: Spiral Ductwork Machine TF-1602 Dimension Of Duct: ¢80mm - ¢1600mm
Length Of Duct: 100mm-8,000mm Weight: 3200 KG
Main Power: 11 KW Cutting System: Roll Shears Cutting Mode
Max Strip Feeding Speed: 60m/min Source Power: 3XAC380V, 50HZ
High Light:

100mm Spiral Tube Machine


11 KW spiral Ductwork Machine


1600mm Spiral Tube Machine

spiral Ductwork Machine TF-1602



Spiral Ductwork Machine TF-1602 BRIEF INTRODUCTION

This spiral ductwork machine is adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs. Process is no sparks and noises, even safety. With fixed mould which makes the dimensions of ducting precisely and unitely, also process is even stable and speedy; Exchanging different sizes molds, then will be convenient for adjusting spiral angle ,being adapted with automatic way for better agility and precision. Be adapted with hydraulic pressure system for achieving feeds, locking, cutting, turn-down movements etc.


The high quality spiral tubes can be obtained through this kind spiral ductwork machine with fixed moulds, the most advantage of the spiral tube from is the excellent locking seam quality, exact diameter size and smooth inner tube surface. With its high efficiency it is suitable for large quantity spiral tube production and high quality request HVAC duct projects completely.

Main Technology Specification - spiral ductwork machine 1602

Dimension of duct ¢80mm - ¢1600mm
Length of duct 100mm-8,000mm
Thickness of cutting plate

Standard Width 137-140mm; GI Steel Thickness 0.4-1.2mm;

NOTE: Stainless steel 0.4-0.8mm

1. Thickness 0.4-0.6mm; Strip width 137mm;

2. Thickness 0.7-0.9mm; Strip width 137mm;

3. Thickness 1.0-1.2mm; Strip width 140mm;

Weight 3200 KG
Main power 11 KW
Cutting system Roll shears cutting mode
Max strip feeding speed 60m/min
Run-out frame Hydraulic pressure drops in automatic way (Automatic control, Length 3m)
Control mode: PLC
Source power 3XAC380V, 50HZ
