| Product Name: | Spiral Tube Machine TF-2020 | Dimension Of Duct: | ￠80mm - ￠2500mm |
|---|---|---|---|
| Length Of Duct: | 100mm-8,000mm | Weight: | 3200 KG |
| Main Power: | 22 KW | Cutting Model: | Plasma Cut And Flying Slitter |
| Control Mode:: | PLC | Source Power: | 3XAC380V, 50HZ |
| High Light: | 80mm Spiral Tube Machine,spiral tube forming machine,2500mm Spiral Tube Machine |
||

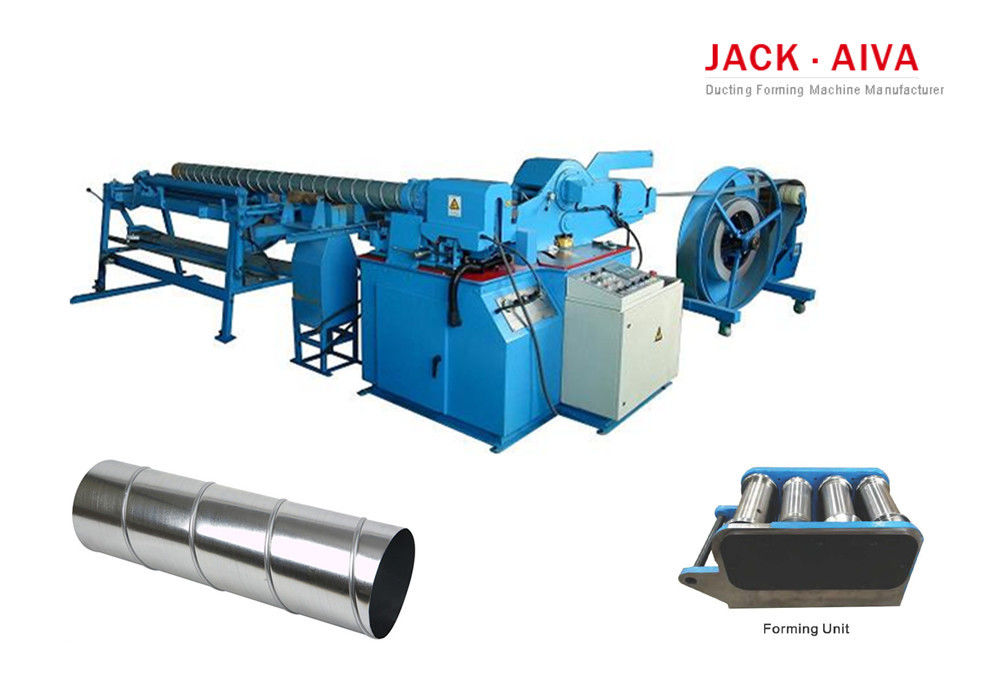

Spiral Tube Machine TF-2020
Spiral Tube Machine TF-2020 Technology Specifications
The Spiral Tube Machine TF-2020 is designed to work with thicker materials, to produce ducts with a larger diameter and at higher production speed with a higher precision. This machine is adapted with hydraulically roll-and-shear cutting which makes cutting edges smoothly and without burrs.
The duct production diameter ranges is from 80 to 2500mm, and as the spiral tube former is equipped with a plasma cutter, it is able to cut through material with a thickness of 2mm or higher. This equipment can also be programmed to cut the exact length for precision trimming to increase the production efficiency.
Features:
· Changeable forming compartment for materials with different thickness.
· Aluminum forming heads are lighter and more precise compared to iron ones.
· Duct corrugated to strengthen duct.
· Maximum feeding speeds up to 68m/min.
Main Parameter- Spiral Tube Machine TF-2020
| ITEM | CONTENT |
| Dimension of duct | ￠80mm - ￠2500mm |
| Length of duct | 100mm-8,000mm |
| Strip thickness |
Galvanized Steel Sheet 0.4-2.0mm； Stainless Steel 0.4-1.2mm； Aluminum 0.4-2.0mm |
| Strip width (GI Steel) | Standard 137mm 0.4-1.0 mm |
| Standard 140mm 1.1-1.3 mm | |
| Standard 150mm 1.4-2.0 mm | |
| Weight | 3200 KG |
| Main power | 22 KW |
| Cutting model | Plasma cut and flying slitter |
| Run-out frame | Hydraulic pressure drops in automatic way (Automatic control, Length 3m) |
| Control mode: | PLC |
| Source power | 3XAC380V, 50HZ |
| Dimension | 2100mm×1800mm×1500mm(Main machine) 2000mm×1100mm×1300mm(De-coiler) 2450mm×1200mm×1200mm(run-out table) |
Spiral Tube Machine Advantage
The high quality spiral tubes can be obtained through this kind spiral tube-former with fixed moulds, the most advantage of the spiral tube from is the excellent locking seam quality, exact diameter size and smooth inner tube surface. With its high efficiency it is suitable for large quantity spiral tube production and high quality request HVAC duct projects completely.
