Product Details:
Place of Origin: China
Brand Name: Jack-Aiva
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 60 working days
Payment Terms: T/T L/C
Contact Now
Detailed Product Description
Product Name: TDF Flange Damper Machine Raw Material: GI Steel, Black Steel
Coil Width: 200-320mm Line Speed: 0-10m/min
Length Tolerance: +/-0.5mm Total Power (KW): 24kw
Dimension (mm): 15000*1100*1550 Material Thickness (mm):: 1.2-1.5mm
High Light:

200mm VCD Machine


320mm Flange Damper Machine


320mm VCD Machine

VCD Damper Frame Production Line, TDF flange damper Machine




Brief Introduction - VCD Damper Frame production Line, TDF flange damper Machine

The VCD Damper frame produced by the Roll Forming Line is the TDF flange style Damper. Our automatic Fire VCD damper production line is high efficiency machine, it is developed based on fully absorbing abroad competitors' advanced experience, it applied new crafts, new techniques and solved effectively many problems brought plate without any damages. the fire damper produced by it doesn't need weld and rust prevention treatment, and guarantees the zinc coating of zinc with any damages, which conforms to the national environmental protection requirements, its full line achieved standardized, intelligent and high efficiency production, reduced product period greatly, saving time and labor, and reduced the scrap rate of product, which is the idea equipment for batch production of fire VCD damper.

Technology specification of TDF Style VCD Damper Frame machine

The normal VCD casing profiles production Line is designed according to 1.5mm thickness GI Steel. The VCD damper frame profile production line is consisted of uncoiler (manual), leveler and hydraulic press, hydraulic cutter, strip feeding table, roll form machine, hydraulic bender, hydraulic system, electrical control system, etc.

Function Description

- Double servo driving, full automation operation

- Damper frame width: 200-320mm; adjustable

- Flange type: 34 common plate/ 30 angel steel / 40 angle steel

- Damper Frame type: L Type; hollow square; single chip

- Efficiency: 350pcs / 8 hours

- Continuous production order model process

- Accordance with 3C certification specification

Main parameters of damper casing production line

Material thickness (mm): 1.2-1.5mm
Raw Material GI Steel, black steel
Coil width 200-320mm
Line speed 0-10m/min
Length tolerance +/-0.5mm
VCD Frame bending tolerance: ± 0.08mm / 1000mm
Flange type

Fixed width 200 mm (VCD Flange TDF 35mm)

It can be designed according to customer requirement.

Processing method Cut To length / single straight piece / 口 type / L type
Total power (KW) 24kw
Dimension (mm) 15000*1100*1550

TDF Fire VCD Damper & Production Line Brief introduction

The whole solution for HVAC fire VCD damper production are including outer damper frame roll forming machine, positive pressure air supply outlet production line, blade roll forming machine, support roll forming machine, stainless steel spring profile roll forming machine, riveting platform, copper sheathing, square shaft making machine, etc.


The fire damper actions details are as following, when the temperature of the flue gas reaches 280 °C, the person has basically evacuated, the smoke exhaust has no practical significance, and the flue gas has been fired at this time, the valve will be closed automatically, to avoid the spread of fire. The exhaust fumes of the system can be used to eliminate the smoke exhaust fire damper on the branch pipe by closed fire exhaust vent. In case of fire, the air outlet is opened or manually opened by the control center through 24V DC. When the smoke temperature reaches 280 °C, it is automatically turned off, and the reset must also be manual. Smoke exhaust fire dampers should also be installed at the entrance of the exhaust fan room to spread the fire to the floor of the fan room.

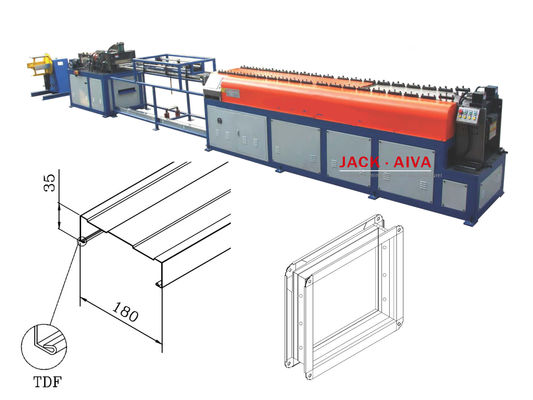

The profile drawing is for type of TDF flange style damper. Custom style decorative sheet profiles are welcome!

Customized damper can be designed according to client drawing or sample.

TAG: Fire Damper Frame Roll Forming Production Line, TDF flange Damper
