JACK-AIVA Machinery CO,.LTD
DUCTWORK MACHINERY MANUFACTURER
 |
| Place of Origin: | China |
| Brand Name: | Jack-Aiva |
| Certification: | CE SGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T L/C |
| Product Name: | Copper Wire Spiral PU Flexible Air Duct Pipe Making Machine | Machine Type: | Pu-50 |
|---|---|---|---|
| Duct Diameter: | ￠25-￠400mm | Length Of Duct:: | Adjustable |
| Plastic Processed:: | PU Material | Efficiency: | 10-25kg/hour |
| Total Power: | Around 30KW | Source Powder: | 380v/3p/50hz |
| High Light: | 25mm Pipe Making Machine,400mm Air Duct Machine,400mm Pipe Making Machine |
||

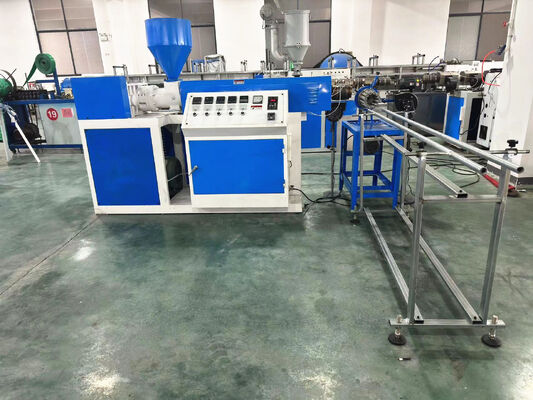

Copper Wire Spiral PU Flexible Air Duct Pipe Making Machine
PU Steel Wire Flexible Hose Vacuum Air Duct Spiral Hose for Ventilating Production Line
This machine is special designed for production the PU flexible duct with steel wire inside. The flexible duct Wall is made of abrasion resistant Polyurethane (wall thickness between the spirals ca. 0,4mm), Shore A ~85, copper plated spring steel spiral embedded into wall.
The flexible PU ducts are mainly used in clothing, footwear, textiles, jewelry, gifts and other industries. More and more people use TPU products as it is environment friendly.

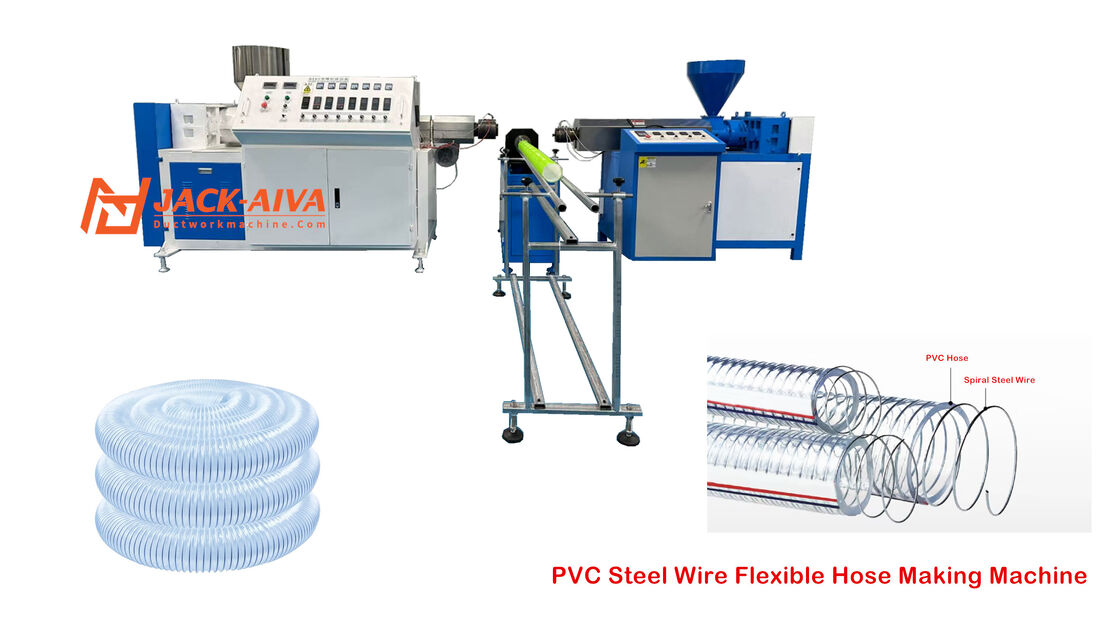

This PVC Suction Soft Spiral Reinforced Hose Extruder is designed to produce PVC soft spiral reinforced pipe, which is widely used in industry , agriculture , architecture , irrigation market and so on. PVC Suction Soft Spiral Reinforced Hose Extruder consists of two sets single screw plastic extruders, mould, forming machine,cooling water tank, rotatory haul off machine and winder.
Main parameters
| ITEM | CONTENT |
| Raw material | TPU PU PVC, spiral wire: elastic steel wire |
| Machine type | Pu-50 |
| Duct type | Shrinkable PU flexible spiral duct with steel wire inside. |
| Duct Diameter | ￠25-￠400mm (according to client requirements) |
| Moulds List (10sets) | 50, 75, 100, 125, 150, 200, 250, 300, 350, 400mm |
| Length of duct: | Adjustable |
| Steel wire (mm) | 1.2, 1.5, 2.0, 2.5mm (Recommended for production PU hose) |
| Plastic Processed: | PU material |
| Product size: |
50, 75, 100, 125, 150, 200, 250, 300, 350, 400mm NOTE: The duct spiral distance is fixed. |
| Efficiency | 10-25kg/hour |
| Total Power | Around 30KW |
| Source Powder | 380v/3p/50hz |
| Weight | 1500KG |
| Sizes | 5000mm * 1500mm * 1600mm |
Flexible PU duct Features
- A Copper plated steel helix embedded between two layers of polyurethane;
- Transparent wall, wall thickness from 0.4mm~1.2mm;
- Extremely flexible and compressible: 1:4;
- Excellent internal and external abrasion and tearing resistant;
- The Copper plated steel helix can be made antistatic;
- Temperature range:-40°C to +90°C (max. 125°C for short period);
Applications- TPU PU PVC flexible hose suction pipe
Application: steel wire hose, usually used for suction occasions, especially suitable for wear resistance of solid, such as dust, powder, fiber, debris and particulate matter; gaseous and liquid medium, and industrial dust suction, industrial vacuum cleaners, paper or fabric suction, as anti-wear protection tube.
Contact Person: sales
Tel: +8613915206868
