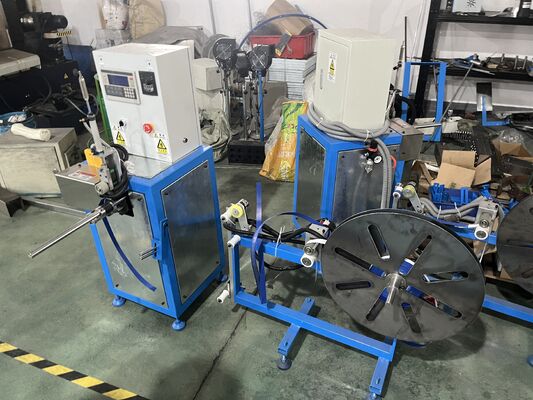

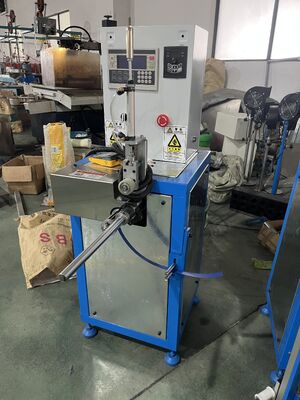

Flexible Duct End Lining Machine

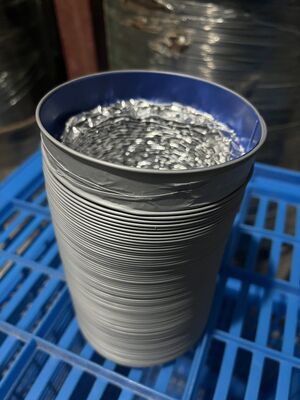

The Flexible Duct End Lining Machine is specially designed to apply a plastic liner strip inside both ends of aluminum flexible air ducts. This process creates a smooth and even duct edge, preventing exposed steel wire from affecting installation and ensuring easier, safer duct connections.

Unlike sealing or taping equipment, this machine focuses on inner edge finishing, making it an essential solution for high-quality flexible duct production.

Key Features

• Inner Liner Application Technology
  Precisely applies adhesive plastic strips to the inner edge of flexible ducts.
• Smooth Edge Finishing
  Eliminates exposed wire ends and ensures clean, professional duct openings.
• Improved Installation Efficiency
  Makes duct connection faster and easier for installers on site.
• Stable & Reliable Operation
  Heavy-duty structure with consistent performance for long-term production.
• Adjustable for Different Duct Sizes
  Suitable for various diameters of aluminum flexible ducts.

Applications

This machine is widely used in:

• HVAC flexible air duct manufacturing
• Aluminum flexible duct production lines
• Ventilation system factories
• Air conditioning duct processing

It is particularly suitable for manufacturers aiming to improve duct connection quality and installation convenience.

Why Inner Lining Matters

In standard flexible ducts, exposed steel wire at the ends can:

• Interfere with duct connections
• Damage sealing materials
• Reduce installation efficiency

By applying an inner plastic liner strip, the duct ends become:

• Smooth and safe
• Easy to connect
• More professional in appearance

Technical Specifications

Optional Configurations

• Automatic feeding system
• Adjustable diameter tooling
• PLC control system
• Custom liner material compatibility

Why Choose Us

With extensive experience in HVAC duct equipment manufacturing, we provide:

• Proven machine design with stable performance
• High-quality components processed by CNC equipment
• Flexible customization for different markets
• Reliable global export experience (Europe, Middle East, Asia)

Related Machines

• Flexible Duct Forming Machine
• Aluminum Flexible Duct Machine
• Oval Duct Machine
• Duct Cutting Machine

Get a Quote

Looking for a reliable Flexible Duct End Lining Machine manufacturer?

Contact us now for:

• Machine video
• Technical details
• Competitive quotation

 FAQ

Q: What is a duct end lining machine used for?
A: It applies a plastic liner inside duct ends to ensure smooth edges and better connection.

Q: Is this machine for sealing ducts?
A: No, it is used for inner edge finishing, not sealing.
