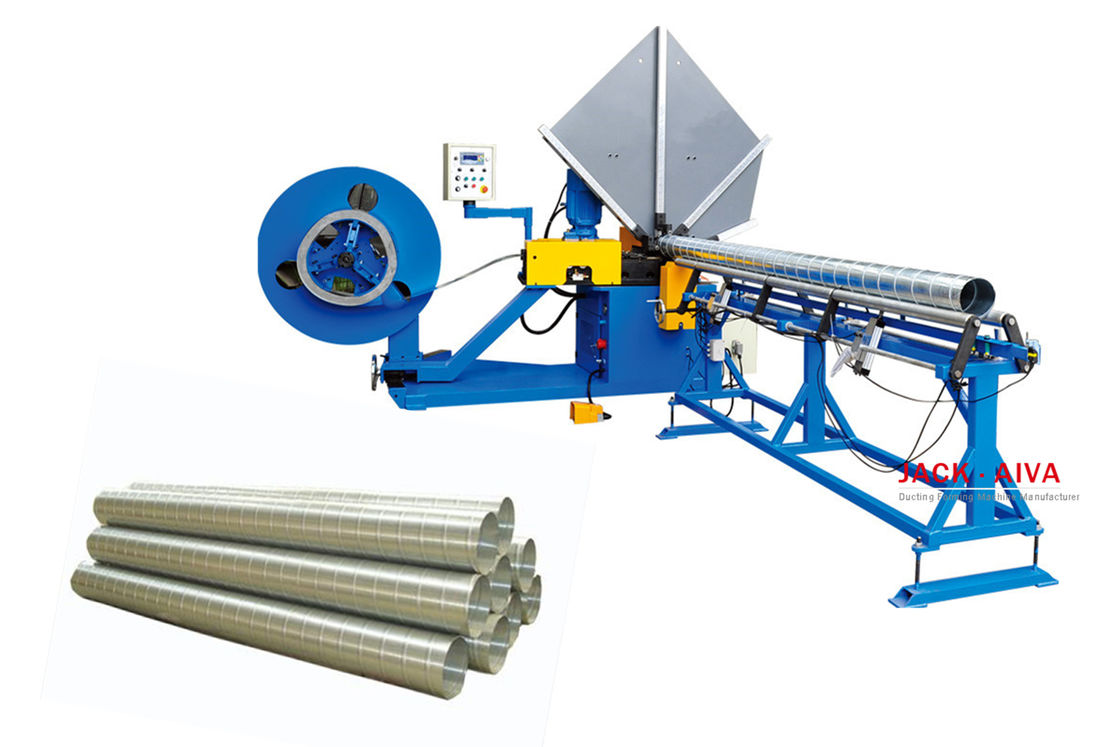

Spiral Tube Former TF-1500 Spiral Tube Forming Machine

Spiral Tube Former TF-1500 Spiral Tube Forming Machine

  • Spiral Tube Former TF-1500 Spiral Tube Forming Machine
  • Spiral Tube Former TF-1500 Spiral Tube Forming Machine
  • Spiral Tube Former TF-1500 Spiral Tube Forming Machine
Spiral Tube Former TF-1500 Spiral Tube Forming Machine
Product Details:
Place of Origin: China
Brand Name: Jack-Aiva
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 60 working days
Payment Terms: T/T L/C
Contact Now
Detailed Product Description
Product Name: Spiral Tube-former, TF-1500 Tube Diameter: ¢85-¢1500mm
Tube Length: 120-8000mm (adjustable) Strip Speed: 1-30m/min
Lock Seam Style: Outside Main Motor Power: 5.5KW
Saw Cutting Motor: 3KW Working Pressure: 0.5-0.7KMP
High Light:

0.7KMP Spiral Tube former

,

30m/min Spiral Tube former

,

30m/min spiral tube forming machine

Spiral Tube-former, TF-1500







Spiral tube machine TF-1500 with Plasma cutter + strip moulds + saw cutter

This is a convenient spiral tube forming machine, Special mould for various tube diameters, various tube diameters can be obtained with its adjustable steel strip moulds, easy to be operation and custom diameter ducts can be obtained. Machine Special design is benefit for movement and production at working site. High speed synchronization cutting system and CNC control system are adopted, and very convenient for operation.

Our manufacturer is one of the earliest supplier in Chinese market, many of this spiral tube machines sold into world market, With 15 years technology development, This style machine is very popular in ductwork industry, With is cheap price and stable quality. also the standard style to recommend to our clients. The machine is with plasma cutter and saw cutter, and strip moulds. the duct range can be from 85mm to 1500mm. with the special designed strip moulds and plasma cutter, the heavy ducts is easy to be produced.

The spiral tubeformer TF-1500 is the most popular one in the present world market.

Main Technical Date

Item Content
Model TF-1500
Tube Diameter ¢85-¢1500mm
Tube Length 120-8000mm (adjustable)
Raw Material Galvanized steel, Stainless steel, Aluminum etc
Thickness range 0.4-1.2mm(Galvanized steel)
Strip Width 137mm (138mm strip width recommended)
Strip speed 1-30m/min
Lock seam style Outside
Main motor power 5.5KW
Saw cutting motor 3KW
Working pressure 0.5-0.7KMP
Cutting mode

Saw cutter + Plasma cutter

Note: Roller shearer (Optional)

Run-out frame: Automatic cut-to length control, Length 1.5m
Controlling System PLC automatic control
Electric source power 380V/50Hz (it can be According to customer’s request)
Weight 2380Kg
Dimensions(L*W*H) 3500x2200x2850mm

Spiral Round Duct

Spiral round lock-seam duct is the most efficient way to transport air in HVAC systems. The round profile greater flow efficiencies than rectangular ducts. Because round ducts are inherently stronger than rectangular profiles, they can be lighter metal gauges and can be installed in longer spans. The 4-ply spiral lock-seams of “spiral duct” create a product that is stronger than traditional welded-seam round ducts of the same gauge. Spiral lock-seams have practically no leakage, and are the only mechanical seams exempted from sealing under energy standards such as ASHRAE Standard 90.1-2013.

- Plasma cutter







- Strip Moulds
