| Product Name: | Spiral Tube-former, TF-1500 | Tube Diameter: | ￠85-￠1500mm |
|---|---|---|---|
| Tube Length: | 120-8000mm (adjustable) | Strip Width: | 137-140mm |
| Strip Speed: | 1-30m/min | Main Motor Power: | 11KW |
| Saw Cutting Motor: | 5.5KW | Working Pressure: | 0.5-0.7KMP |
| High Light: | 85mm Spiral Duct Machine,5.5KW Spiral Duct Machine,5.5KW spiral duct forming machine |
||
Spiral Duct Machine TF-1500C

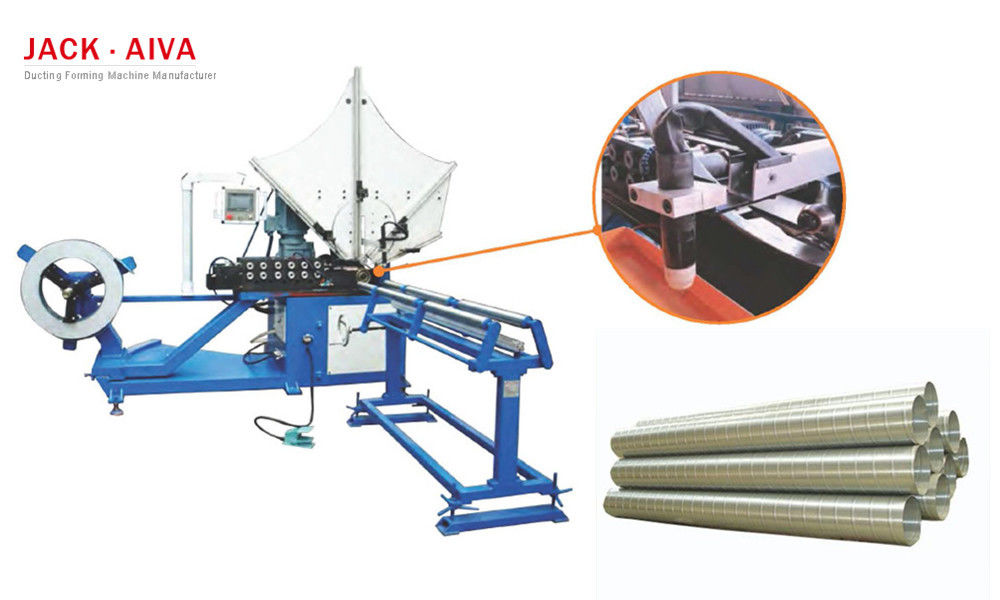

Spiral Duct Machine TF-1500C with Plasma cutter + strip moulds + Saw cutter
This is a convenient spiral tube forming machine, Special mould for various tube diameters, various tube diameters can be obtained with its adjustable steel strip moulds, installed with plasma cutter, the spiral tube machine is easy to be operated, and custom diameter ducts can be obtained. Special design is benefit for movement and production at working site.
We are one of the earliest supplier in Chinese market, after around 10 years development, some important parts have been modified to improve the stable diameter of ducts production. High precision machine parts achieve the lower equipment power and machine is more durable than any others in the present market. Two design patent is including this spiral tube machine.
Main Technical Date- Spiral Duct Machine TF-1500C
| Item | Content |
| Model | TF-1500C |
| Tube Diameter | ￠85-￠1500mm |
| Tube Length | 120-8000mm (adjustable) |
| Raw Material | Galvanized steel, Stainless steel, Aluminum etc |
| Thickness range |
0.4-2.0mm(Galvanized steel) 0.4-1.2mm(stainless steel) |
| Forming Rollers |
2sets Included - 0.4-1.2mm - 1.2-2.0mm |
| Strip Width | 137-140mm |
| Strip speed | 1-30m/min |
| Lock seam style | Outside |
| Main motor power | 11KW |
| Saw cutting motor | 5.5KW |
| Working pressure | 0.5-0.7KMP |
| Cutting mode |
Saw cutter + Plasma cutterLGK-100N Note: Roller shearer (Optional) |
| Run-out frame: | Automatic cut-to length control, Length 1.5m |
| Controlling System | PLC automatic control |
| Electric source power | 380V/50Hz (it can be According to customer’s request) |
| Weight | 2800kg |
| Dimensions(L*W*H) | 3500x2200x2850mm |
Spiral Round Duct
Spiral round lock-seam duct is the most efficient way to transport air in HVAC systems. The round profile greater flow efficiencies than rectangular ducts. Because round ducts are inherently stronger than rectangular profiles, they can be lighter metal gauges and can be installed in longer spans. The 4-ply spiral lock-seams of “spiral duct” create a product that is stronger than traditional welded-seam round ducts of the same gauge. Spiral lock-seams have practically no leakage, and are the only mechanical seams exempted from sealing under energy standards such as ASHRAE Standard 90.1-2013.
