Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring

Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring

  • Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring
  • Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring
  • Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring
  • Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring
Barrel Hoop Machine For Locking Ring Clamping Ring Drum Closing Ring
Product Details:
Place of Origin: CHINA
Brand Name: JACK-AIVA
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD10000-USD30000
Packaging Details: According to client request
Delivery Time: 30 DAYS
Supply Ability: 10SETS/ MONTH
Contact Now
Detailed Product Description
High Light:

Barrel Hoop Machine For Locking Ring

,

Barrel Hoop Machine For Clamping Ring

,

Drum Closing Ring Barrel Hoop Machine

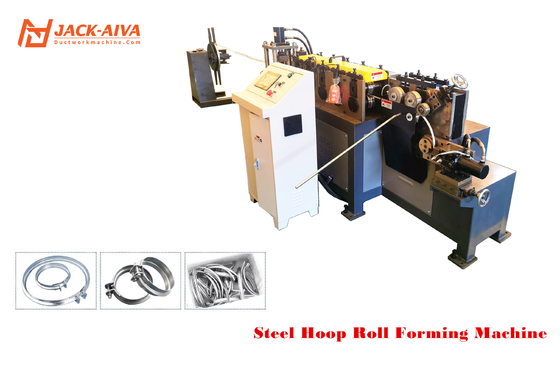

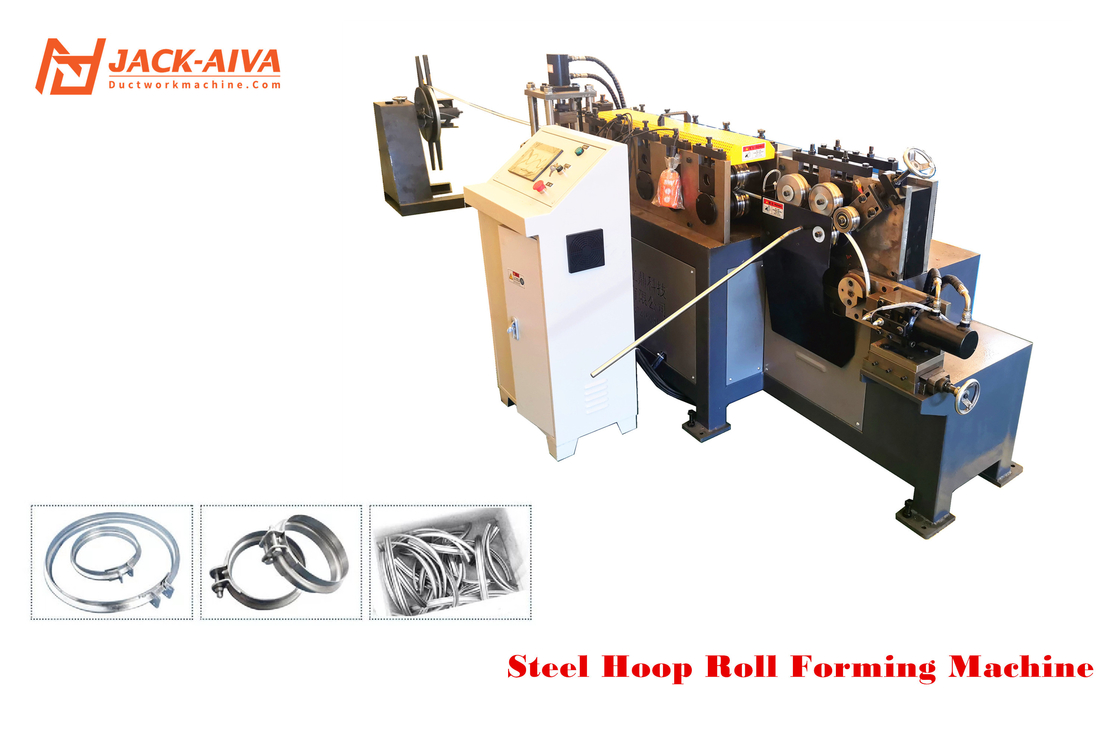

Brief Introduction Roll forming machine for locking ring



The barrel hoop roll forming, bending and cutting by our line at the same time. This hoop forming machine is together with butt welding machine constitute steel rim forming and butt welding production line. It’s suitable for manufacturing barrel hoops of metal drum, plastic drum, fiber drum, chemical barrel, cleaner barrel etc.

The whole line is consist of De-coiler, main roll forming machine, straightening part, bending device, cut-to length part, run-out table, PLC electrical control system and hydraulic station, etc.



Main Parameters



Profile name Drum closing ring
Material of Sheet: Soft Quality (Annealed) Galvanized Sheet, thickness 0.6-0.8mm
Forming Roller Stations: 7 Stations
Forming Roller shaft: Φ42mm
Forming rollers Cr12Mov, Quenching, hardness HR58-60º,
Forming Speed: 6 -7 meters / min
Main motor: 5.5kw,
Cutter Device Hydraulic cutter
Control system PLC automatic system

We can supply different kinds of steel circle clamping ring according to client’s request.
