JACK-AIVA Machinery CO,.LTD
DUCTWORK MACHINERY MANUFACTURER

|
| Place of Origin: | CHINA |
| Brand Name: | JACK-AIVA |
| Certification: | CE |
| Model Number: | PDF3-30 |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD10000-USD30000 |
| Packaging Details: | According to client request |
| Delivery Time: | 70 DAYS |
| Supply Ability: | 10SETS/ MONTH |

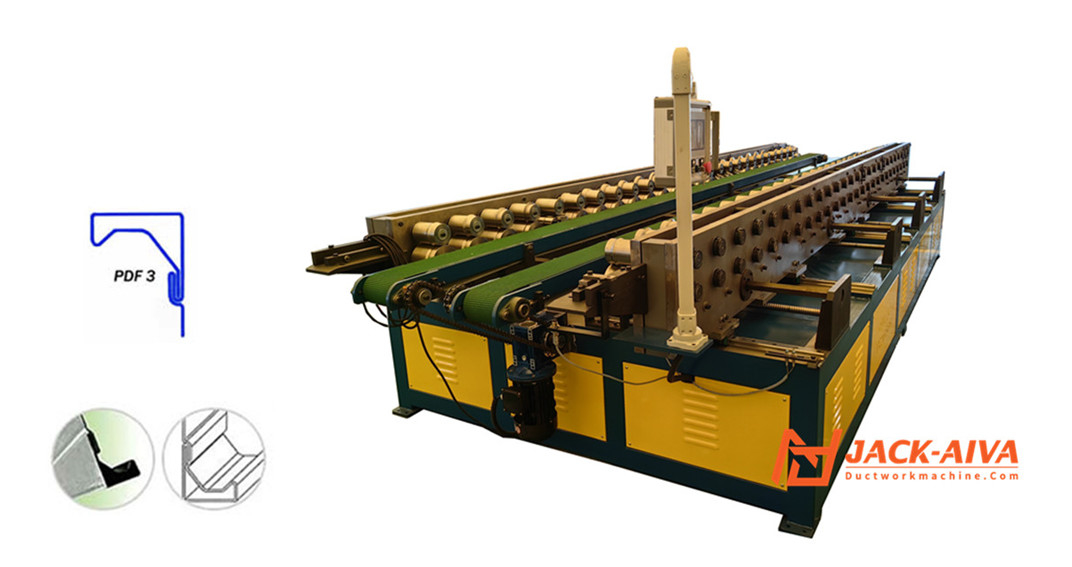

Duplex PDF Duct Flange Roll Former, PDF3 Flange Roll Former, PDF -3 integral duct flange
Machines for the Manufacture of Air-condition Rectangular Ducts Fittings
Duplex PDF3 flange duct Roll Former is designed to form the PDF3 flange 20mm or 30mm Profile on both Sides. The others are optional, such as 20mm PDF3 Flange profile. The hardened steel roller tooling carries intermediate rolls to allow forming down to 400 mm long without trolley and 200 mm with trolley. It can accept short pieces without the need for clamps. The Minimum length is 250mm. PDF-3 flange profile can let you to make more duct connections on the ground for larger duct lifts and more productive installation.
PDF Flange roll former technology drawing
Duct Flange Machine Main parameters
| Item | Content |
| Raw material: | GI steel strip, carbon steel strip, etc |
| Flange Heights | 30mm / 30mm (It can be according to client request. ) |
| Raw Material Thickness (mm): | 0.8 mm - 1.0mm |
| Forming roller station quantity: | About 32 Stations ; Duplex style flange roll former |
| Forming roller | GCR15; 55°~58°after treatment |
| Max speed | 10m/min (adjustable) |
| Driving system | Chain + gears |
| Motor power | 2*5.5kw, |
| Weight (KG): | About 2500KG |
| Line Dimension (L*W*H)mm: | 5500x2200x1200 |
| Electrical system | Plc and touch screen control system |
Duplex Flange profile drawing (PDF3-30*30)
NOTE: It can be customized prepared according to client request.
