Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans

Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans

  • Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans
  • Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans
  • Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans
  • Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans
Automatic Hydraulic Blower Crust Flange Making Machine For Axial Fans
Product Details:
Place of Origin: CHINA
Brand Name: JACK-AIVA
Certification: CE
Model Number: HCFY-1300
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: USD10,000.00-USD30,000.00/SET
Packaging Details: With wood packing
Delivery Time: 30 DAYS
Supply Ability: 10SETS/ MONTH
Contact Now
Detailed Product Description
High Light:

Automatic Blower Crust Flange Making Machine

,

Hydraulic Blower Crust Flange Making Machine

,

Axial Fans Blower Crust Flange Machine

Axial flow fan flanging machine Brief Introduction

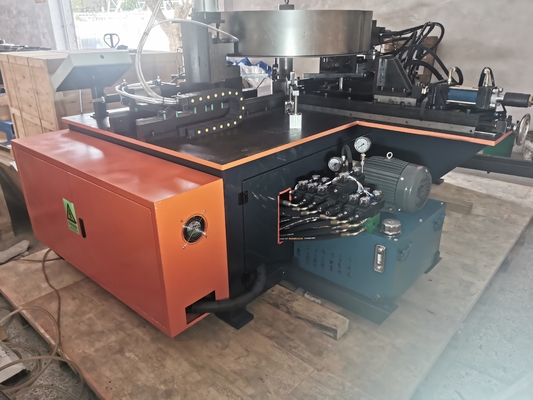

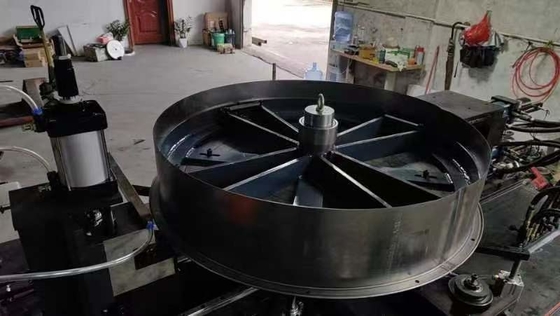

The HCFY-1300 Vertical type Axial flow fan flanging machine can process beading, circle rolling and flanging machine for blower crust. it can complete processing once time automatically and accurately.



This flanging machine Mainly used for large stretching parts after the rolled edge work. Thicker can be rolled below 3mm, larger diameter below 2200mm, larger can be customized, such as barbecue plate, etc. Suitable for stainless steel, iron, copper, aluminum and other round barrel work piece rolled outside

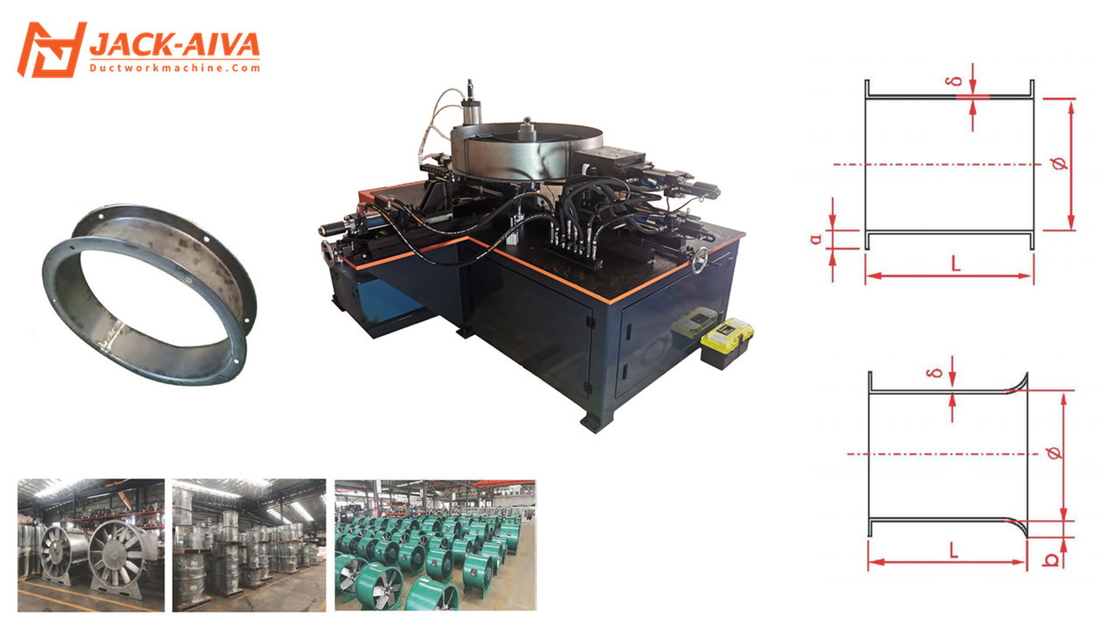

Main Parameters- Horizontal Type Axial flow fan flanging machine



Item Content
Type HCFY-1300
Blower crust Diameter Range (mm) 300-1300mm
Blower crust High (mm) 300-1600mm
Material thickness (mm)

Carbon steel material 1.0-4.0mm

NOTE: If to punching holes, the thickness range is 1.2-2.0mm

Flange Edge Bending size (mm) 10-50mm (90 Degree & 45 Degrees)
Punching holes on flange Φ12mm (other holes Punching moulds is optional)

Hole to center Tolerance : 0.5~1.0mm

Hole to hole Tolerance : ±1.5mm

Rotate position tolerance: ±1.0mm

Punching quantity 0-100
Punching holes position controlled by Servo system & Encode

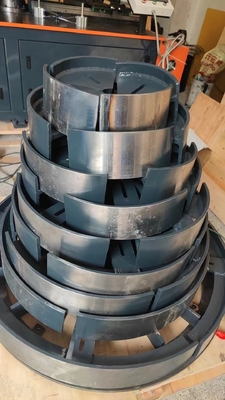

Round duct Spinning moulds (mm) 315,355, 400,450,500,560,630,710,800,900,1000,1120 & 1250
Electrical control system PLC & Touch screen control system
Power Around 17KW
Main Machine sizes 2600*2000*1600
Weight 1500kg
