Brief Introudction

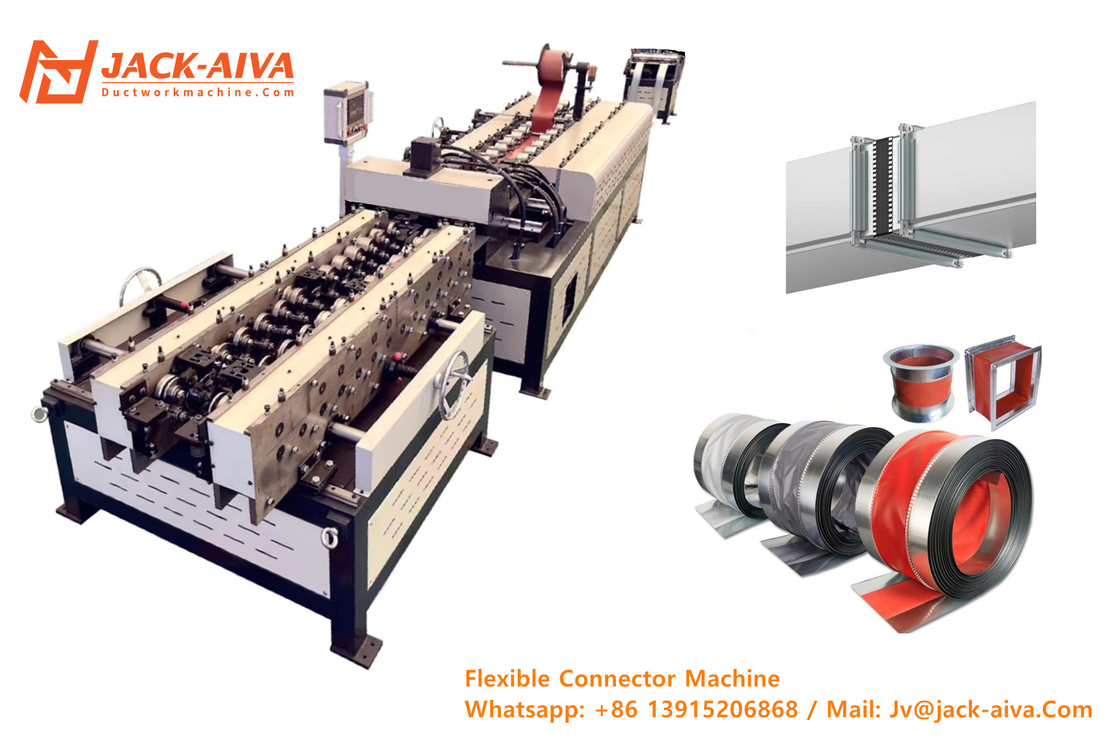

The flex connector production is completed by one line. line max speed can be at 7-8m/min

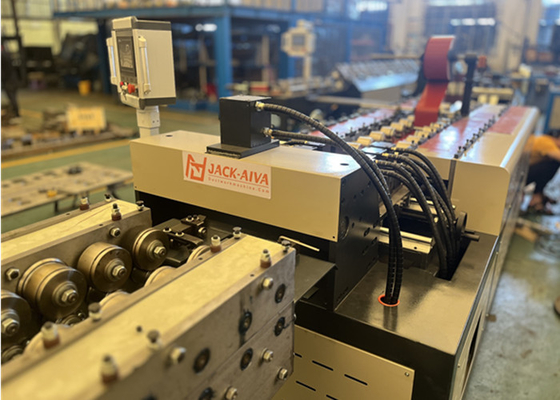

The duct flex connecter roll forming line is consisted of de-coiler, punching holes, main roll forming machine and re-coiler.
Technology flow
Power De-coiler (2sets)---- servo Feeder + hydraulic punching + Punching moulds --Roll former + Notching & cutter ----TDF duplex roll former - Power re-coiler(1set)
Main Parameters
| ITEM | CONTENT |
| Product | Duct flexible connector |
| Line max speed | 7-8m/min |

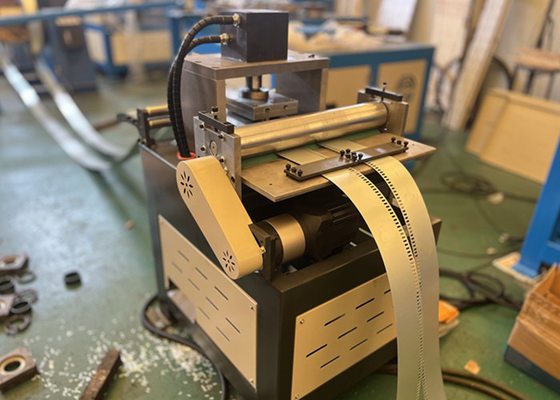

| Punching machine | Servo control Punching system |
| Material step feeding device | Mechanical type |

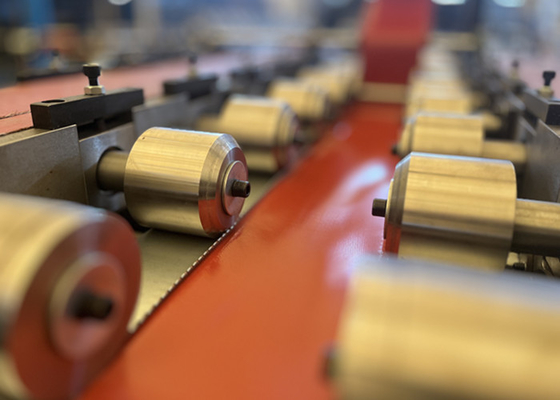

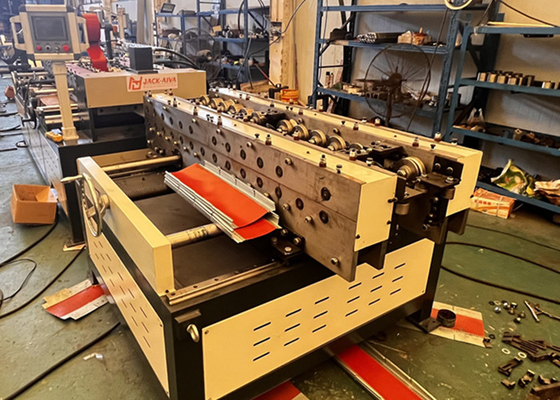

| Forming roller stations | 12 stations x 2 (double line stations on main roll forming machine) |
| Roller material | CR12MoV as raw material ,hardness HRC60-62 after treatment, |
| Shaft material | Quality steel Ф40mm, 45# steel |
| Main motor | 3kw |
| Hydraulic station | 7.5kw |
| Servo feeding motor | 0.75kw |
| suit for material size |
It can be custom made according client’s request. |
| Power source | 3x380v, 50hz, ,(it can be according to client request) |
| Line speed | 0-8m/min |
| Main machine sizes | 3000*1500*1300mm |
| Working space requested (width* length) | 3*12m |
| Machine weight | Around 25000k |
