| Product Name: | Square Duct Manufacture Auto Coil Line Ⅱ | Model: | AML-II |
|---|---|---|---|
| Thinness Range: | 0.6-1.2 Mm | Max Width (m/min): | 1300 |
| Line Speed (mm): | 16 | Coiler Capacity (Kg): | 6000*2 |
| Weight (kg): | 3000 | Dimension (L X W X H)mm: | 2300×2160×1300 |
| High Light: | 1.2mm Duct Coil Line,16mm duct coil line,1300mm Duct Coil Line |
||
Square Duct Manufacture Auto Coil line Ⅱ
Duct manufacture auto coil line Ⅱfor the Manufacture of Air-condition Rectangular Ducts

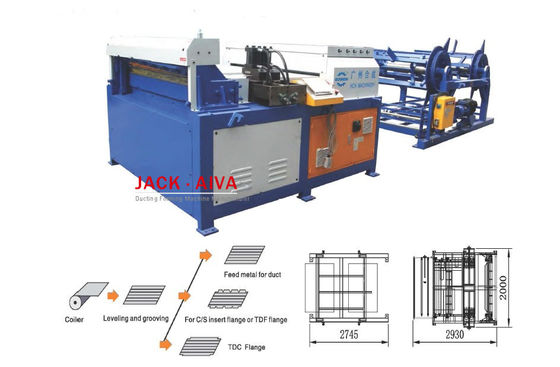

Rectangular Duct Forming Machine Ⅱ / Auto duct coil line Ⅱ / consists of a metal coil feeding device (2 sets un-coiler with 4 coils plates), leveler and grooving rolls (flatting & beading), angle notching device, cutting equipment.
The electrical control system uses a computer which combines with a closed-loop servo-system to increase the precision and stabilization of the line. Full ducting manufacturing functions can be actualized depend on the software.
The square duct auto-line maximum working speed can be 16m/min, and adjustable. The length tolerance is ±0.5mm. The diagonal line tolerance is ±0.8 mm. The feeding frame can be set as the customer’s requirement.
With its lower investment and line working highly-efficient, the duct manufacturing equipment is suitable for a medium sized duct factory specially. Rectangular duct manufacture auto coil line is special for manufacture making HVAC square air ductwork from GI metal sheet coil.

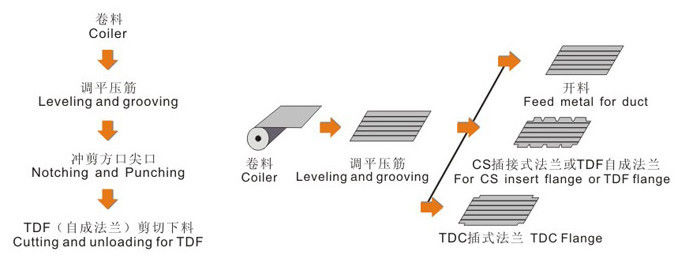

Rectangular Duct Forming Machine Ⅱ or Duct manufacture auto coil line Flow Chart
Main Parameters - Rectangular Duct Forming Machine or Auto coil line Ⅱ
| Model | Thinness range |
Max width (m/min) |
Line speed (mm) |
Coiler capacity (Kg) |
Weight (kg) |
Dimension (L x W x H)mm |
| AML-II | 0.6-1.2 mm | 1300 | 16 | 6000*2 | 3000 | 2300×2160×1300 |
| 1500 | 6000*2 | 3500 | 2300×2460×1300 | |||
| AML-II-D | 0.6-1.5 mm | 1300 | 16 | 6000*2 | 3300 | 2300×2160×1300 |
| 1500 | 6000*2 | 3800 | 2300×2460×1300 |
Usage Features
Duct Manufacture Auto Line Ⅱcan be used for ducting production, either a stand alone system or the start of a complete automatic fabricating system. If the duct manufacture system combines a T-12, Pittsburgh lock machine, folder and shaped clip, high quality ducts can be easily produced. TDF (transverse duct snap flange system) or TDC flange system are all applied.
We can make the different max width and coil different max weight according to clients’ requirement
Coil Line Basic Component
The following are the main devices including the rectangular duct forming equipment II
- Electrical un-coiler: 2 sets (4 coils plates)
- Grooving and notching roller device: 1 set
- Hydraulic cutting machine 1 set
- PLC control system: 1 set (With touch screen, servo control system)
- Hydraulic system: 1 set
TAG: Duct manufacture auto coil line, Rectangular Duct coil line, Square Duct Manufacture line, Duct Auto Coil line, Rectangular Duct Auto Coil Line, Square Duct Manufacture Auto Coil line Ⅱ
