|Place of Origin:
|Minimum Order Quantity:
|60 working days
|Slotted Galvanized Steel Unistrut C Channel
|Forming Roller Stations::
|Forming Roller Shaft::
|Cr12Mov, Quenching, Hardness HRC60-62º
|0 -10 Meters / Min
|Hydraulic Press Or Saw Style Is Optional
Cr12Mov c channel machine,
1.2mm c channel making machine,
1.8mm c channel machine
C Channel Production line, Slotted Galvanized Steel Unistrut C Channel, 1.2-1.8mm,
Roll Forming Machine for steel Unistrut C Metal Slotted Strut Channel 21x21mm & 41x41mm
We can customized design the channel production lines for a wide range of suspension and fastening materials for the planner, contractor or duct fitter. From channel sections/struts via various duct hangers through to pipe clamps and beam clamps you will find everything you need for the quick and easy suspension or attachment of ventilation ducts. channel sections allow for the correct and simple suspension of rectangular ventilation ducts and other pipeline systems.
The roll formed C profile with holes punching on provides Ductwork mounting system proper solutions. A great advantage when using struts for suspension of ductwork is the fact that no additional screws or rivets affect the air duct. No additional sealing measures are necessary and the air tightness of the ducts remains unaffected.
Duct Hanging Slotted C Channel Making Machine Components
The C channel line is consisted of de-coiler, servo control hydraulic holes punching device, main roll forming machine, hydraulic cutter and run out table. The roll forming line technology is as following,
Main parameter - Steel Unistrut C Metal Slotted Strut Channel Machine
|Portal-type frame style, A3 steel
|Forming Roller Stations:
|Forming Roller shaft:
|Cr12Mov, Quenching, hardness HRC60-62º
|0 -10 meters / min
|Material of Sheet:
|Soft Quality (Annealed) Galvanized Sheet
|Hydraulic press or saw style is optional
Duct Hanging Slotted C Channel Application - Thickness 1.2-1.8mm

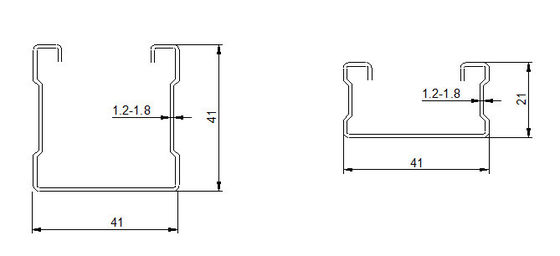

Metal Framing Channel can be used for framing and mounting and for constructing load centers and vertical pipe supports. With a silver-galvanized finish and a half-slot construction, the channel can also be used to create a trapeze for conduit and mechanical piping and to support duct and cable trays. The following are the standard profile drawing for reference.
Customized C channel profile can be supplied according to client requirements.
TAG: Duct Hanging Slotted C Channel machine, Steel Unistrut C Metal Slotted Strut Channel Machine
