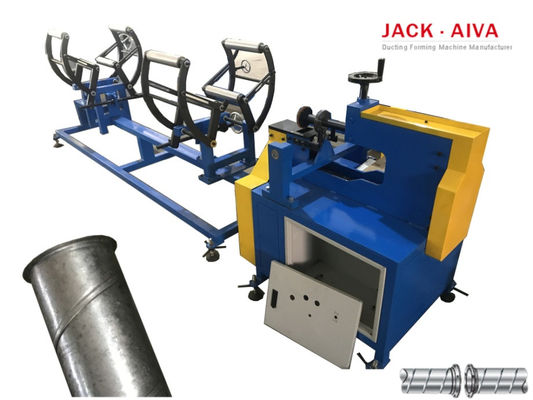

Round Flange Making Machine Duct Flange Machine

Round Flange Making Machine Duct Flange Machine

  • Round Flange Making Machine Duct Flange Machine
  • Round Flange Making Machine Duct Flange Machine
Round Flange Making Machine Duct Flange Machine
Product Details:
Place of Origin: China
Brand Name: Jack-Aiva
Certification: CE SGS
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Delivery Time: 60 working days
Payment Terms: T/T L/C
Contact Now
Detailed Product Description
Product Name: Round Flange Making Machine Thickness: Black Steel 0.4-1.0 Mm
Flange Width: 7 -12mm Diameter: φ100-1000 Mm
Power: 1.5KW Load: 800 Kg
Dimension: 3500*1180*820 Mm Weight: 620 Kg
High Light:

1.0mm Duct Flange Machine


800kg flange making machine


800kg Duct Flange Machine

Round Flange Making Machine




Round Flange of Ventilation fitting Machine- HVAC systems flange g-clamp duct fitting

The spiral tube both ends can be formed to L angle profile by this round duct flange machine, the flange normal high range is 7-12mm, and suitable thickness is 0.4-1.0mm. also can be customized prepared according to client requirements.

This flange is adopted by the air duct Flange-to-flange joints system, also the most popular round duct connection way in the present world marked, widely used to connect pipes in dust and fume control applications, in outdoor applications, and for additional strength in high positive or high negative pressure applications.

Technology Specification - Round Flange Machine for making Ventilation fitting

We are specialized in design and supply various Custom Roll Forming machines, and also one of the earliest one in china in this HVAC ducting machinery industry in china.

This advantage of this machine is easy operation and lower cost. it is mainly consists of main machine and run out table, and simple control system. This metal flanging machine offers a proven technology in the ventilation industry.

Main Parameters - Round Tube Flange Making Machine for the Air-condition Ducts Fittings

Thickness Black Steel 0.4-1.0 mm
Flange width 7 -12mm; NOTE: It can be customized prepared.
Diameter φ100-1000 mm
Power 1.5KW
Load 800 kg
Weight 620 kg
Dimension 3500*1180*820 mm

Flanged Ductwork Installation- Spiral Pipe Or round duct connection system

Mainly There are two basic methods for connecting Spiral Pipe, the Slip Joints and Flange-to-Flange Joints

The first and simplest method, is by using Slip Joints. Since all spiral pipe ends are female, and all spiral pipe fittings are male, they can be easily slipped together and fastened. However many installations have additional performance requirements, and to meet these requirements a number of Flange-to-Flange connection methods have been developed.

The basic flange-to-flange joints consist of two facing flanges. angle rings flanges are rolled angle iron with specifically punched holes. Bolts are used to "pull" the flanges together. Flanges and the duct are available in all sizes — 3" and up, in black iron, galvanized or SS. The duct fabrication and welding are based upon the customer's need and request.




TAG: Round Duct fittings machine, spiral duct fittings, HVAC duct fittings for spiral duct, HVAC Sprial Ductwork, Flanged Ductwork
