Product Details:
Place of Origin: CHINA
Brand Name: JACK-AIVA
Certification: CE
Model Number: FD-Curtain style damper frame
Payment & Shipping Terms:
Minimum Order Quantity: 1SET
Price: USD30000-USD40000
Packaging Details: According to client request
Delivery Time: 75 DAYS
Supply Ability: 10SETS/ MONTH
Contact Now
Detailed Product Description
Highlight:

Curtain Fire Damper Frame Machine



Curtain Fire Damper Frame Making Machine Technology specification

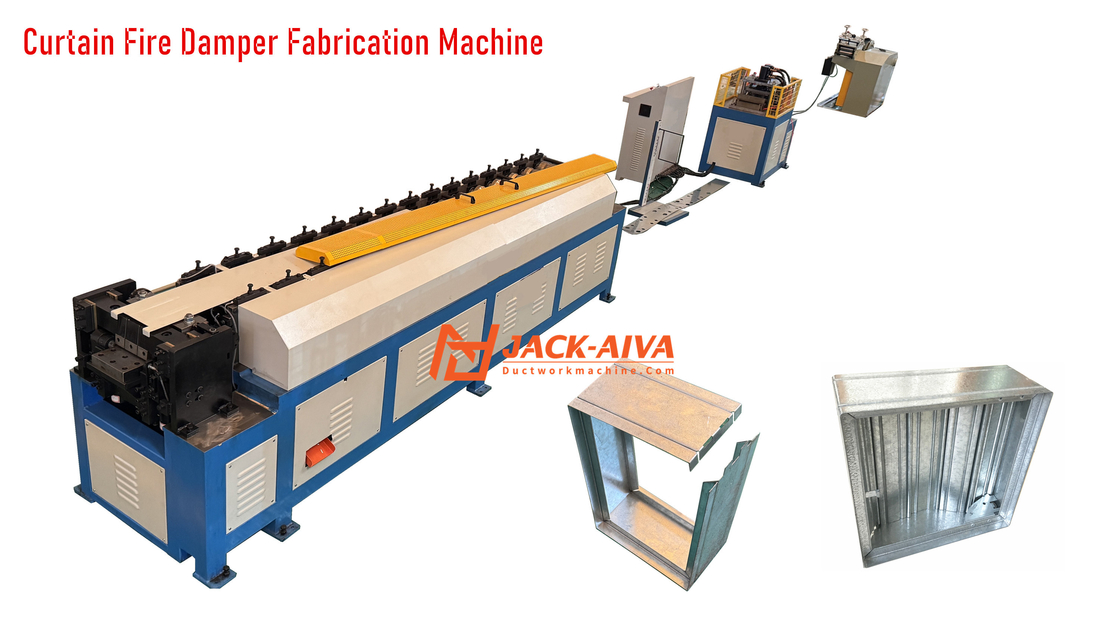

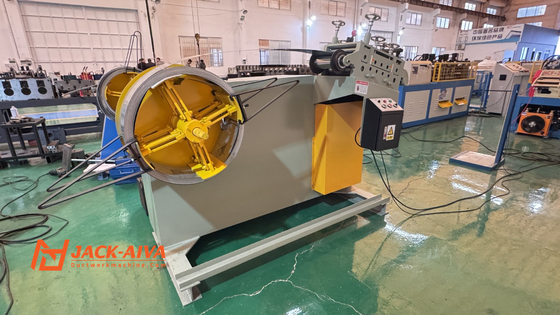

The Curtain Fire Damper frame auto Production Line also named Fire Damper, Curtain Fire Damper making machine and Fire Dampers Fabrication Machines, The whole Curtain Fire Damper frame Fabrication Machines is designed according to 0.9mm thickness GI Steel. The whole line is consisted of uncoiler (manual), Leveler+ servo feeder +Hydraulic punching + Main roll former + Hydraulic cutter, hydraulic cutter, strip feeding table, hydraulic bender, etc.

Fire Damper Frame Making Machine #Curtain Fire Damper Fabrication Machine # Curtain Fire Damper Frame Auto Production Line 0



Technology specifications

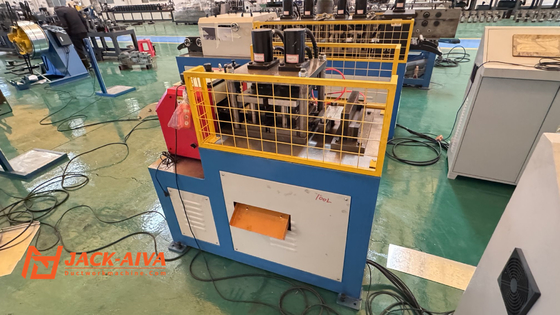

Feeding —Leveling —Punching (2 sets) —Roll Forming—Cutting—servo feeding—folding—Out table



Fire Damper Frame Making Machine #Curtain Fire Damper Fabrication Machine # Curtain Fire Damper Frame Auto Production Line 1



Main parameters of Curtain Fire Damper Making Machine


Line structure Portal-type frame style, 45# steel
Forming Roller Stations: 15 Stations
Forming Roller shaft: Φ48mm
Forming rollers Cr12MoV Quenching, hardness HRC59-61º
Main motor: 5.5kw
Material of Sheet: Soft Quality (Annealed) Galvanized or colored Sheets
Raw material GI cold steel
Sheet Thickness: 1.5mm
Line speed 0-8m/min
Control mode 3xAC380V. 50HZ. (Other system is optional)
Weight: Around 4 tons
Main roll former Sizes(L*W*H): 6m*0.8m*1.2m

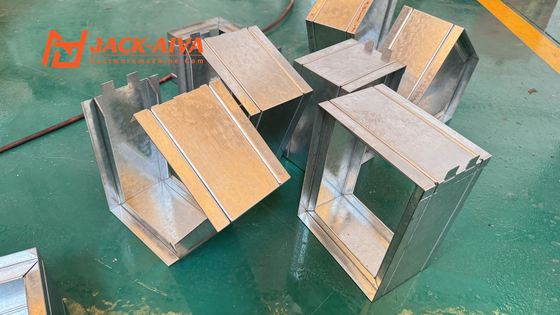

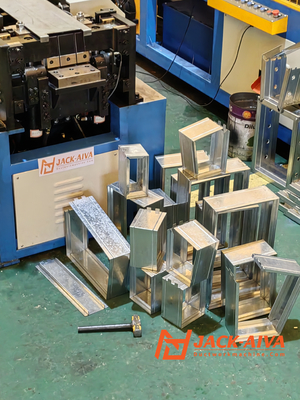

Fire Damper Frame Brief Introduction - Curtain Type Fire Damper




Fire Damper Frame Making Machine #Curtain Fire Damper Fabrication Machine # Curtain Fire Damper Frame Auto Production Line 2





Curtain Fire Damper are passive fire protection products used in HVAC ducting industry to avoid the spread of fire inside the ductwork. The curtain fire damper is developed based on fully absorbing abroad competitors' advanced experience, the fire damper produced by it doesn't need weld and rust prevention treatment, and reduced product period greatly, saving time, which is the idea equipment for batch production of Curtain Fire Damper.
