JACK-AIVA Machinery CO,.LTD
DUCTWORK MACHINERY MANUFACTURER

|
| Place of Origin: | CHINA |
| Brand Name: | JACK-AIVA |
| Certification: | CE |
| Minimum Order Quantity: | 1SET |
|---|---|
| Price: | USD10,000.00-USD20,000.00/SET |
| Packaging Details: | without packing |
| Delivery Time: | 30 DAYS |
| Supply Ability: | 10SETS/ MONTH |

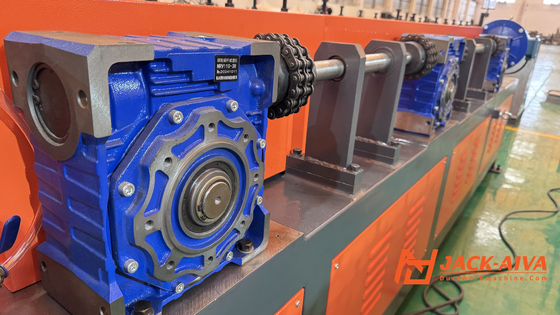

| Driving Sytem: | RV Gearing Box | Cutting Model: | Stationary Cutter |
|---|---|---|---|
| Flange Style: | Customized Designed According As Request | Machine Color: | Customized Prepared As Request |

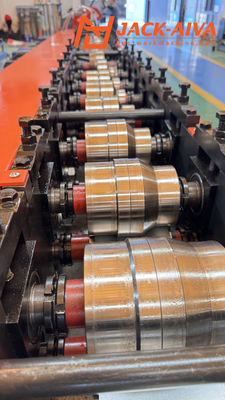

| Roller Material: | GCR15 | Roll Forming Station: | 17 Stations |

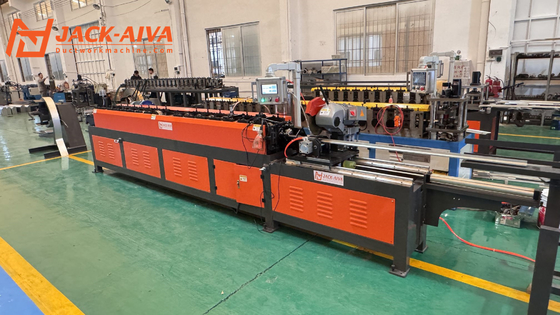

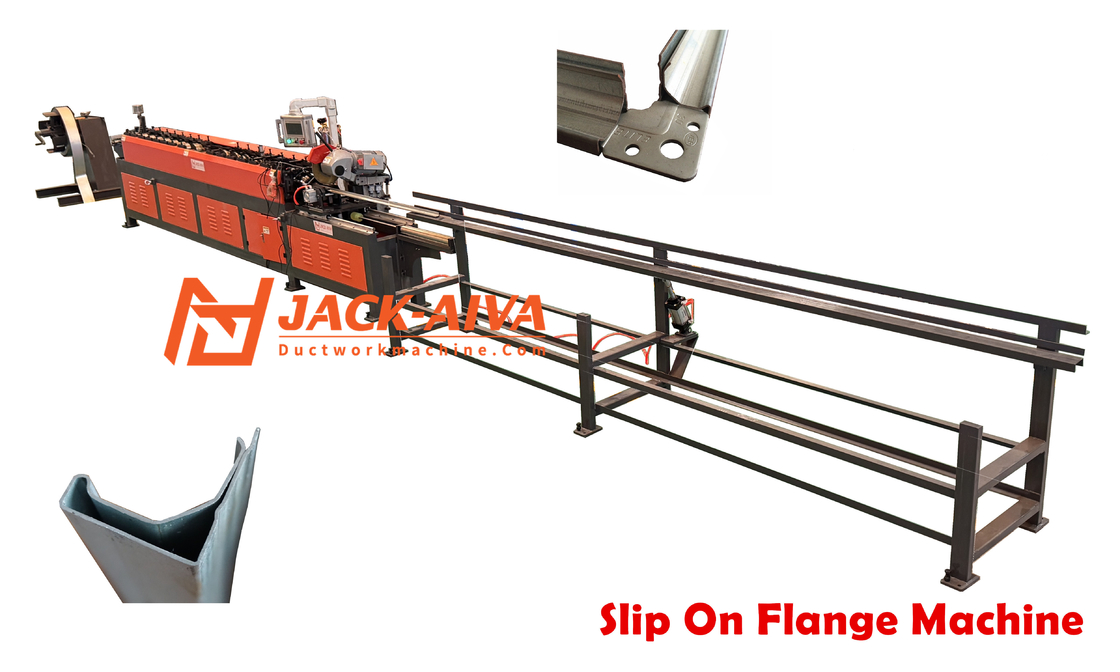

Slip on Flange machine Brief Introduction
Slip on Flange Roll Former machine is for the Manufacture of Slide on flange on all straight ducts and Air-condition Rectangular Ducts Fittings. One of the two universal rectangular duct flange making systems in the world. It can save time and material drastically with its well-seal, strong and durable joint structure. So Slip on Flange Roll Form Machines is much suitable for producing a duct with a large sectional area. Many famous buildings in the world utilize this kind of structure in the ventilation system
Slip on Flange Roll Former Machine Main parameters
Our manufacturer is the earliest and biggest one in china to design and manufacture the Slip on Flange machine. Our flange roll former is for manufacturing TDC-15 mm, TDC-20 mm, TDC-30, TDC-40 wide slide on frame flange etc. custom TDC flange profiles can be offered on request.
Main Parameters
| Raw material: | GI steel strip, carbon steel strip, etc | |
| Raw material width (mm): | (according to the client’s sample or drawings) | |
| Raw material thickness range (mm): |
0.6 – 1.2 mm It can be designed according to the client’s requirement) |
|
| Forming roller station quantity: | About 17 Stations | |
| Motor power | Main motor: | 4kw, AC380v, 50HZ |
| Cutting motor: | 1.75kw, 2xAC220v, 50HZ | |
| Weight (KG): | About 2000 | |
| Line Dimension (L*W*H)mm: | 4850x700x1500 | |
| TDC flange profile: | (according to the client’s sample or drawings) | |
Slip on Flange Installation
The TDC flange Profile from 15mm to 50mm all can be customized prepared according to Client request. Custom Slip on Flange Roll Form Machines are welcome!
