Place of Origin: | China |
Brand Name: | Jack-Aiva |
Certification: | CE SGS |
Minimum Order Quantity: | Negotiable |
---|---|
Price: | Negotiable |
Delivery Time: | 60 working days |
Payment Terms: | T/T L/C |
Product Name: | DN Series Pneumatic Spot Welder | Rated Capacity (KVA): | 35 |
---|---|---|---|
Max Welding Power (KVA): | 56 | Input Voltage (V): | 380 |
Air Switch (A): | 50 | Max Clamping Force: | 2500 |
Air Pressure (MPA): | 0.5 | Duct Diameter (mm): | 10 |
Net Weight (kg): | 60 | ||
High Light: | 0.5MPA Metal Sheet Machinery,380V Spot Welding Ductwork Machine,0.5MPA Spot Welding Metal Sheet Machinery |
Suspension Spot Welding Ductwork Machine
Suspension Spot Welding Welder Ductwork Machine

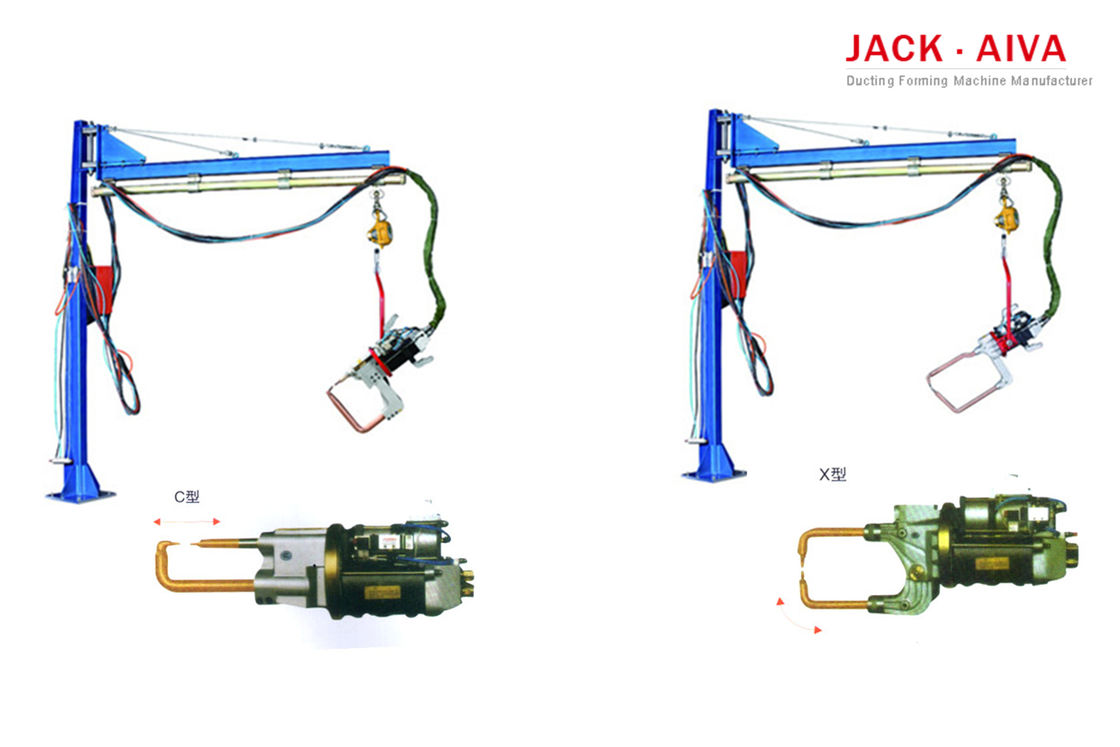

DN2 Series Integrated suspension spot welder is also known as hand spot welding machine.
It is consisted of the IT-GUN, Power source Cable and SIV control box.
The Integrated suspension spot welder modular design, welding transformer, welding tongs collection as a whole, aluminum body, with a small volume of output of large, energy efficient, lightweight and flexible.
Integrated suspension spot welder bearing turntable hanging device, can take advantage of balancer x, y, z three-dimensional movement in any direction, to achieve all-round all-position welding, horizontal and vertical direction 360 degree rotation, light and flexible operation.
DN2 series suspension spot welder welding clamp a variety of specifications to choose from, moving spot stationary workpiece apply. Machinable welding carbon steel plate, coated plate, stainless steel, aluminum, etc. weld thickness is 0.5 ~ 2mm, maximum weld thickness up to 4mm,
DN2 series suspension spot welder is widely used in automobiles, motorcycles, agricultural vehicles, tractors, construction machinery, security doors, cabinets (air conditioners, washing machines, refrigerators, etc.), household appliances and refrigeration equipment, ventilation equipment, such as air duct manufacturing and processing industries.
Main Parameters - DN2 Series Integrated suspension spot welder
ITEM | CONTENT | |||
Welding clamp shape | X | C | XC | XC |
Rated Capacity (KVA) | 35 | 35 | 40 | 63 |
Max Welding Power (KVA) | 56 | 50 | 76 | 82 |
MAX secondary Current (KA) | 18 | 18 | 20 | 22.5 |
Second Unload voltage (V) | 5.8 | 5.8 | 6.8 | 7.9 |
Input voltage (V) | 380 | 380 | 380 | 380 |
Cable sectional area (mm2) | 8 | 8 | 10 | 16 |
Air switch (A) | 50 | 50 | 60 | 80 |
Weld arm throat width (mm) | 168 | 110 | 228 | 288 |
Min Length of welding arm | 200 | 160 | 250 | 250 |
Max length of welding arm | 650 | 250 | 1000 | 1150 |
Max Clamping Force | 2500 | 2500 | 2600 | 2800 |
Air Pressure (MPA) | 0.5 | 0.5 | 0.5 | 0.5 |
Duct Diameter (mm) | 10 | 10 | 10 | 10 |
Cooling water required (L/H) | 240 | 240 | 360 | 360 |
Max. Welding ability (mm) | 3+3 | 3+3 | 4+4 | 5=5 |
Net weight (kg) | 60 | 55 | 80 | 90 |
Note:
The distance, angle & length of welding arm can be custom prepared according to client’s requirements.
