JACK-AIVA Machinery CO,.LTD
DUCTWORK MACHINERY MANUFACTURER
 |
| Place of Origin: | China |
| Brand Name: | Jack-Aiva |
| Certification: | CE SGS |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Delivery Time: | 60 working days |
| Payment Terms: | T/T L/C |
| Product Name: | Standing “S” Cleat Machine | Raw Material Thickness Capacity (mm):: | 1.0mm. |
|---|---|---|---|
| Forming Roller Material: | CR12, AFTER Treatment. HRC58º-60ºc | Roller Shaft Diameter: | Φ40mm |
| Station Side Steel Plate Thickness: | 25mm | Motor Power: | 3kw, 3xAC380v, 50HZ |
| Weight (KG):: | About 2000kg | Line Dimension (L*W*H)mm:: | 7500x750x1500 |
| High Light: | HRC58 Cleat Machine,HRC60 Cleat Machine,1.0mm Cleat Machine |
||

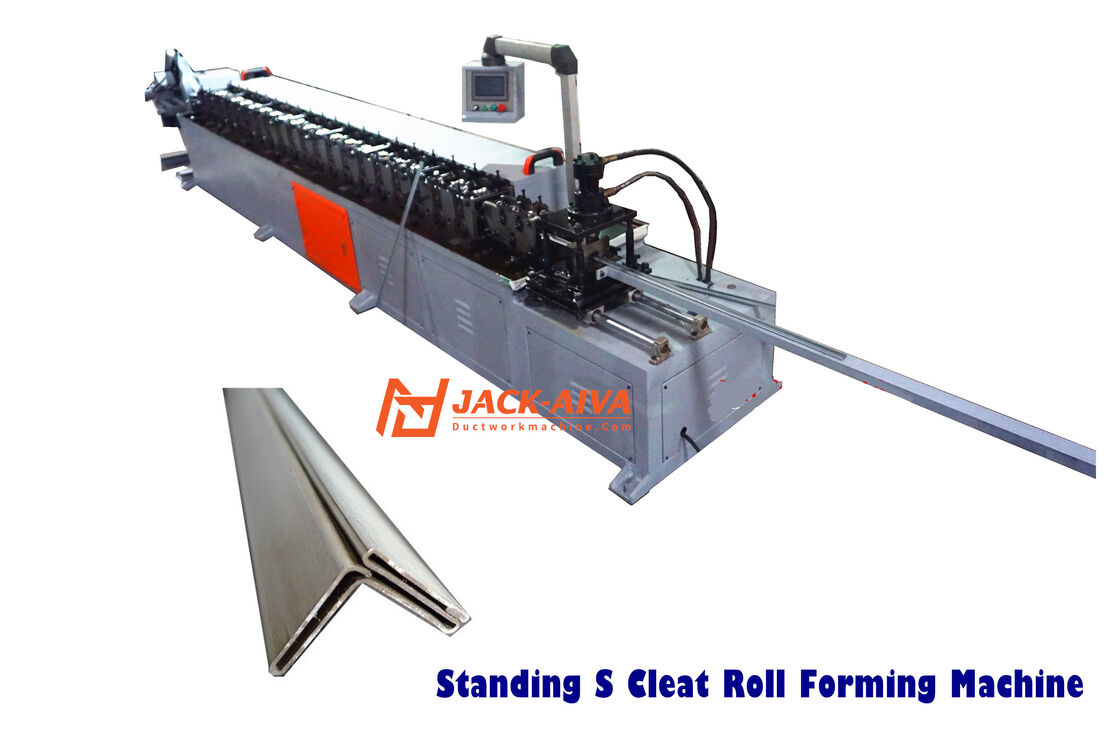

Standing “S” Cleat Machine
Roll Forming machine for production Standing “S” Cleat
The standing "s" cleat profile is as a member in this HVAC ducting industry, manufactured by roll forming machine. We specialize in Custom Roll Forming industry, and provide cold roll forming machines and equipment for all types of industries, with furnished the special metal sheet cold roll forming equipments. The scope of supply to embrace complete roll form systems or production lines is to be extended. It is the advantage for us to supply you the quality machine.
Standing “S” Cleat Roll Forming Machine Technology Specification
Standing “S” Cleat Roll Forming Machine mainly consists of conic, guide equipment, leveling system, roll forming system, cutting system, run-out table, hydraulic station, electric control cabinet.
Standing “S” Cleat Roll Forming Machine Main Parameters
| Raw material: | GI steel strip |
| Raw material thickness capacity (mm): | 1.0mm. |
| Forming roller station quantity: | About 15 Stations |
| Forming roller material | CR12, AFTER treatment. HRC58º-60ºc |
| Roller shaft diameter | Φ40mm |
| Station side steel plate thickness | 25mm |
| Motor power | 3kw, 3xAC380v, 50HZ |
| Weight (KG): | About 2000kg |
| Line speed | Adjustable, 0-10m/min |
| Line Dimension (L*W*H)mm: | 7500x750x1500 |

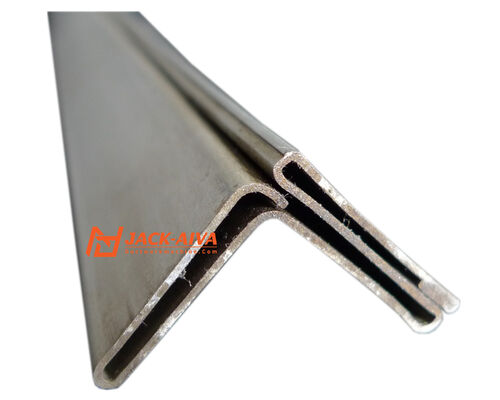

Standing “S” Cleat profile
The following typical style standing s cleat for reference. The custom roll forming profile is welcome!
TAG: Roll Forming Machine / Standing “S” Cleat Roll Forming Machine / “S” Cleat Machine
